Starting-Unit for a Motor-Generator-Set,
Management of a Solar-Hybrid System

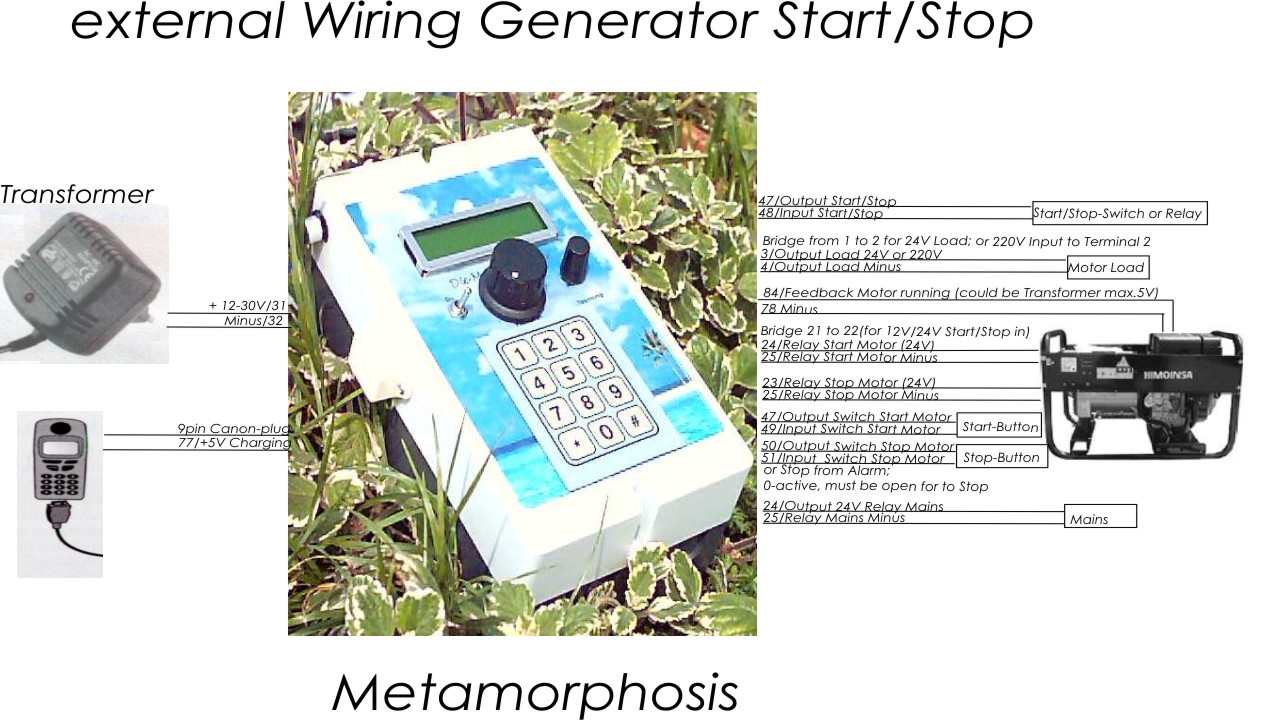

Generator Start-System

    In many countries Generator-Sets are widely used due to a weak Electrical Power-Supply or no Electrical Grid. With this Software you can Start and Stop a Generator-Set and you have a lot of additional features. You can easily combine the generator with a Solar-System to get a cost efficient System with Electricity in any case.

- Manual Start/Stop of a Generator-Set with the Keyboard or external Push-buttons

- Start by Battery Status low (if it is used as a Stand-alone System), Stop with Battery full

- Start by Mains failure (if you have a Electrical Grid) and Stop if Mains-Supply is coming back

- Start by a Timer. You can give a Start.-and running Time or you can also program ”running every second day for 3 hours” etc

- Three Start-Trials and Error-Message if the Unit can not Start (Text and Acoustic Alarm)

- Load is switched on delayed, Generator is switched off delayed (for protection of the Motor)

- Additional Alarm-Inputs for Oil-Temperature-Alarm, Water-Temperature-Alarm etc. and automatic shut down of the Generator

- Stop by a programmable Max-Time or Emergency-Stop or Switch or Alarm

- Optional: Display of Frequency, Current, Voltage and other necessary values

- Three independent Running-Time counters. Setpoints for Maintenance-Purpose: For example refill Diesel, change of Oil, general Revision, Text and Acoustic Alarm

- Telephone-Notification in case of any Alarm (Tank empty, no Starting etc), three Telephone-numbers can be programmed, all numbers are dialed or only a specific one.

- Fully Remote-Control of the Status of the Unit including Remote-Start/Stop of the Motor by Mobile-Phone and Modem

- Sending SMS in case of Alarm, Start/Stop of the Generator by SMS

- Logging of all Starts and Stops, easy uploading the Protocol to the PC, free Software for the PC

- The Device can be combined with a Solar-Charger (same Device) or with a High Current Battery Loading-Device (external)

more Information and Downloads

download

Overview and Prices

Download of the Software (no change in Settings)

Download of the Bootloader for to load the Software

Click here to download the Operation-Manual     as pdf: PDF_klein

Download of the Terminal-List

Download of the Software for to Remote-Control the Metamorphosis and Upload of Measured Data



Overview Hybrid-System
